Support Intel® 10th/11th CPU ；
Up to 2*GbE Ethernet；
Up to 4*USB3.0，6*USB2.0;
Support Windows&Linux OS；
Support OpenVINO AI Development Kit；
Tel：0755-88658839
Weekday 09：30-18：00

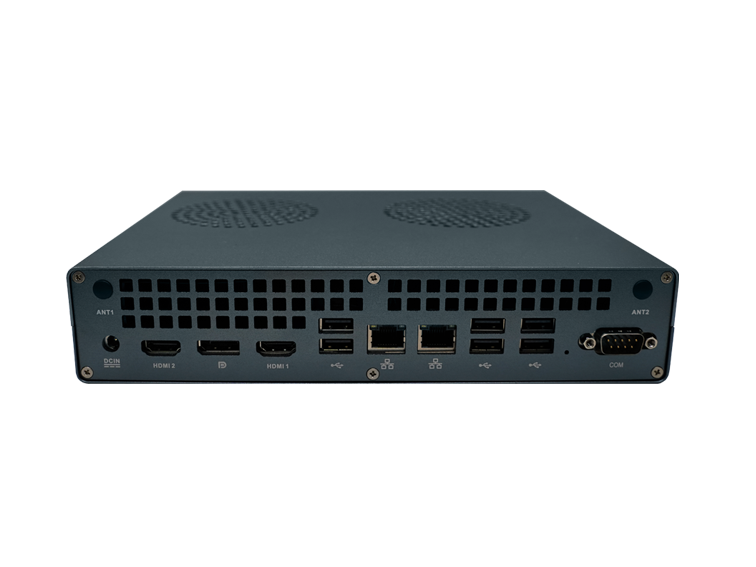

B18
| System | CPU | Intel® 10th/11th CPU |
| Chipset | H470/H510 | |
| BIOS | AMI BIOS | |
| Memory | 2*SO DIMM DDR4 Max to 64GB | |
| Independent display | GPU | MXM Graphics card |
| DP/HDMI | 1 x DP1.2a + HDMI2.0a | |
| Integrated display | HDMI | HDMI1.4b |
| Extend | M.2 | 1 x M.2 2230 for WIFI+BT |
| Storage | M.2 | 1 x M.2 2280 for SSD（SATA/PCIe ） |
| I/O Ports | Ethernet | Realtek 8111H; |
| 2 x RJ45 | ||
| USB | 4 x USB3.0； | |
| 6 x USB2.0； | ||
| Audio | 1 x 3.5mm MIC， 1 x 3.5mm Line out | |
| LED | 1 x PWR LED，1 x HDD LED | |
| COM | 1 x RS232 | |
| Management | WoL | |
| Power On | ||
| Watch Dog | ||
| Power | Type | DC IN |
| Voltage | 19V | |
| Rate | 150W | |
| Software Support | Support windows10、LniuxOS； Support Intel OpenVINO AI Kit； | |
| Environment | Operating Temp | 0 ℃ ~ 40 ℃ |
| Storage Temp | -20 ℃ ~ 60 ℃ | |
| RH | 95%@40 ℃（Non-condensing） | |
| Mechanical | Mounting | Desktop & Hanging |
| Dimensions | 240mm x 187mm x 49mm | |
| Colour | steel gray | |
| Certifications | CE/FCC(DoC) Class B，CCC | |
