E60
E60 series products are a high-performance, fan cooling structure of industrial control system, chassis using all aluminum alloy material; 2*DDR4 SODIMM slots, supporting 2133 MHZ memory and up to 32GB memory. , support 1* HDMI2.0 or HDMI1.4, display output, support 2* 8111H Gigabit NIC, support network wake up, PXE functions; Support 2*COM serial interface, COM2/COM2 support RS232/485 switching, support OpenVINO development kit;
| Model | E60 | |
| Case | Materiel | Aluminium |
| Colour | Black | |
| Dimensions | 150*126*56.5MM | |
| Mount | Desktop/Embeded | |
| Mainboard | CPU | Intel® 10th Celeron 5205U |
| Chipset | SOC | |
| Display | Intel® UHD Graphics | |
| Memory | 2*DDR4 SODIMM | |

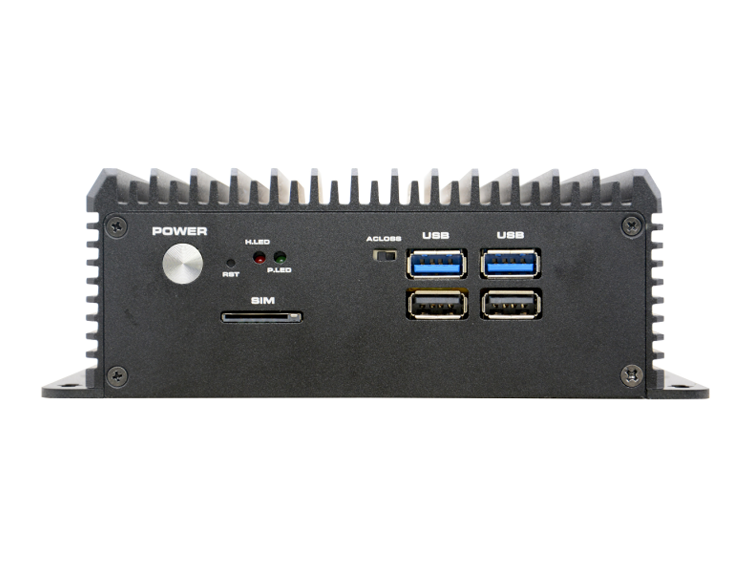

| Front IO | POWER Button | 1*power button，1*Restart button |
| AC LOSS | 1*AC LOSS | |
| USB | 2* USB2.0，2* USB3.0 | |
| SIM | 1* SIM Slot for 3G/4G | |

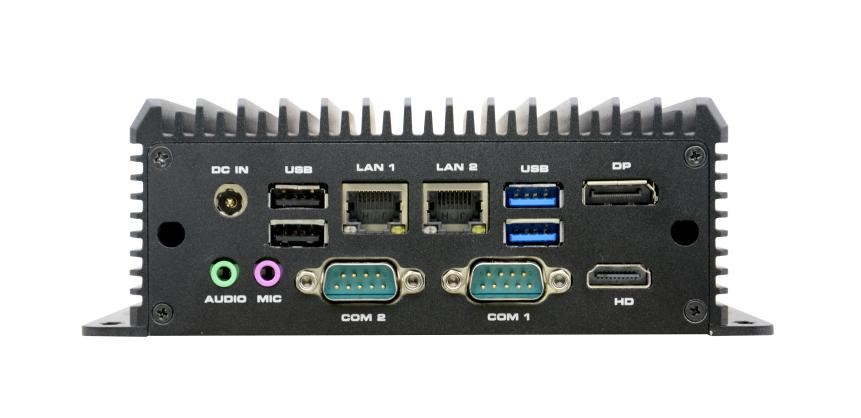

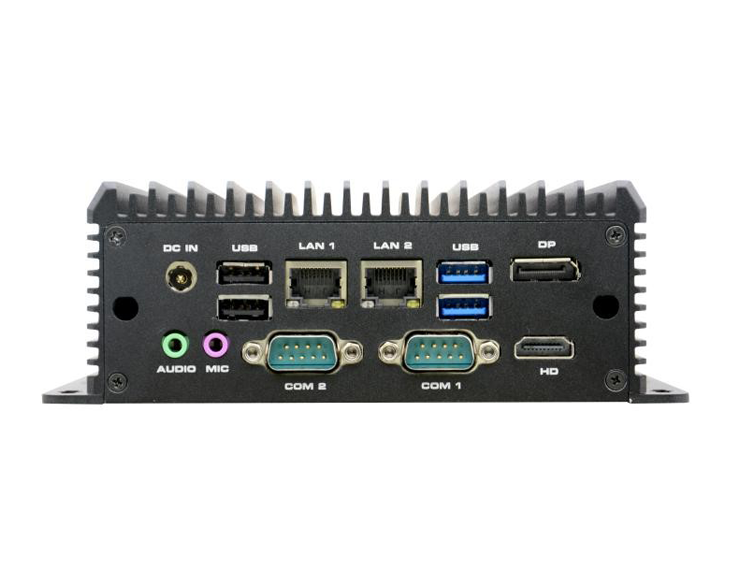

| Rear IO | Display Ports | 1*HDMI2.0（4096x2304@60Hz），1* DP（4096x2304@60Hz） |
| LAN | 2* GbE Ethernet RJ45 | |
| USB | 2* USB2.0，2* USB3.0 | |
| COM | 2* RS232 DB9 support RS485/232 | |
| Audio | 1* Line out，1* MIC | |
| Power | 1* +12V DC IN, | |
| Storage | SATA | 1*2.5" HDD/SSD |
| M.2 | 1* M.2 for 2280 NVME PCIEx4 SSD | |
| Extend | Mini PCIE | 1* Mini-PCIE for 4G module |
| M.2 | 1* M.2 for WIFI module | |
| Software Support | OS | Windows 10，Linux |
| AI Kits | OpenVINO | |
| Watch Dog | Support | |
| Power | Type | Adapter |
| Voltage | DC 12V | |
| Rate | AC TO DC、36W / 60W | |
| Environment | Operating Temp | -10℃～60℃ |
| Storage Temp | -20℃～70℃ | |
| RH | 5%-95% Non-condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
