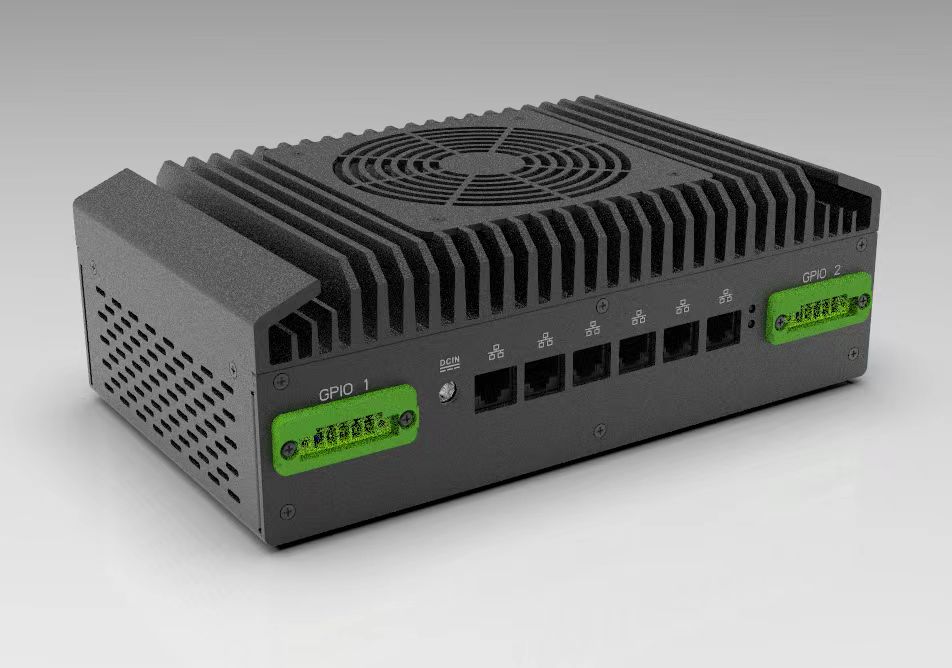

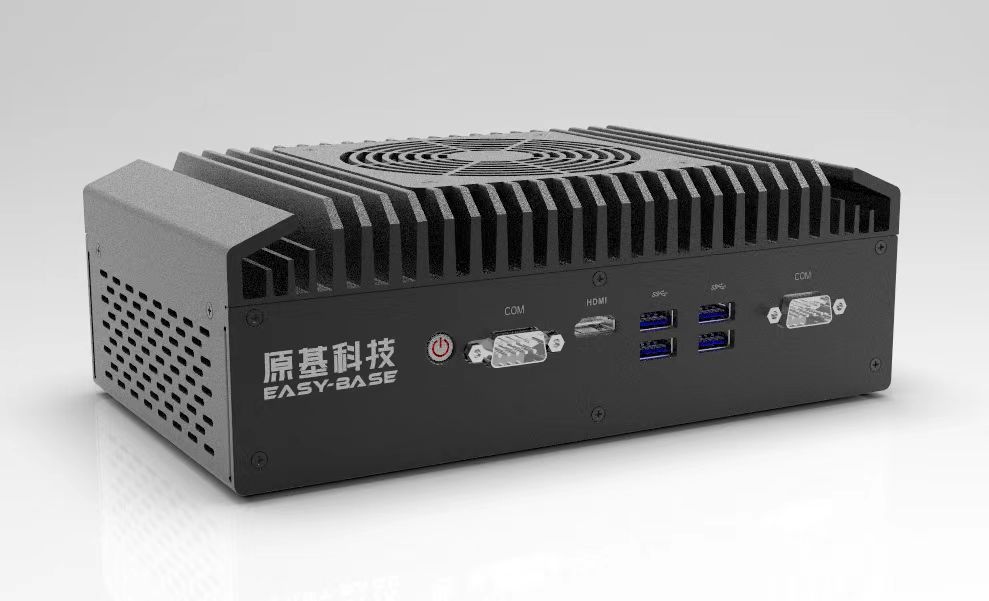

E82

The E82 series is a high-performance, fan-cooled edge computing quasi-system with an all-aluminum chassis. 2*DDR4 SODIMM slots, supporting 2133 MHZ memory and up to 32GB memory. , supports 1* HDMI2.0 or HDMI1.4, display output, supports a maximum of six 2.5G network adapters, supports network wake up, PXE functions; Support 2*COM serial interface, COM2/COM2 support RS232/485 switching, support windows and Linux systems, support OpenVINO development kit;

SystemCPUIntel® 11th Tigerlake-U CPU
ChipsetSOC
BIOSAMI BIOS
Memory2*SO DIMM DDR4 max to 32GB
DisplayGPUIntel HD Graphics
HDMIHDMI2.0
ExtendMiniPCIe1 x MiniPCIe for WIFI+BT
StorageM.21 x  MiniPCIe for SSD
I/O PortsEthernetIntel I225V;
6x RJ45
 USB4 x USB3.0;
2 x USB2.0;
 LED1*Pwr LED,1*HDD LED
 COM2 x RS232
ManagementWOL
Power On
Watch Dog
Power TypeDC IN
Voltage19V
 Rate65W
Software SupportSupport windows10、LniuxOS;
Support Intel OpenVINO AI Development Kit;
EnvironmentOperating Temp0 ℃ ~ 40 ℃
Storage Temp-20 ℃ ~ 60 ℃
RH 95%@40 ℃(Non-condensing)
MechanicalMounting Desktop & Hanging
Dimensions206mm x 125mm x 65mm
ColourBlack
CertificationsCE/FCC(DoC) Class B,CCC
