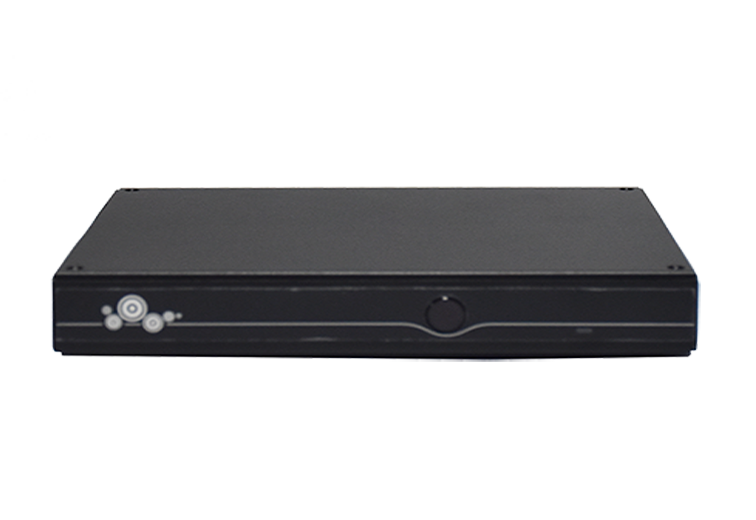

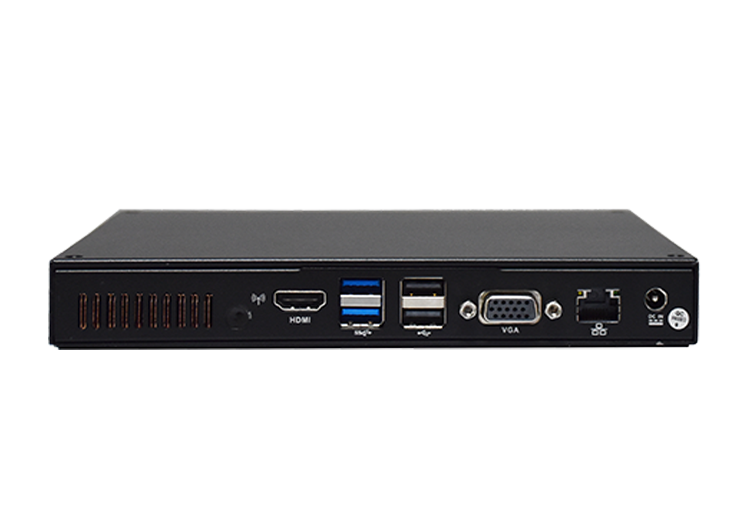

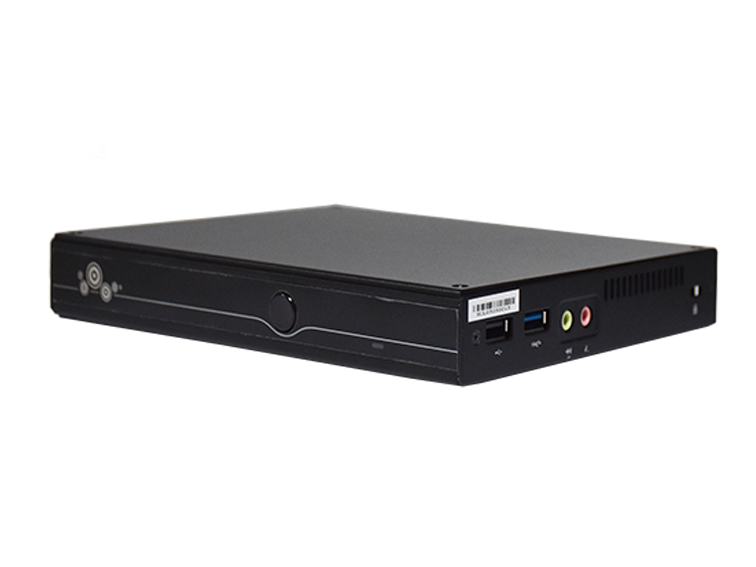

B20
Ultra-thin thermail
Support Intel® 6th/7th CPU ；
Up to 2*Gigabit Ethernet；
Up to 3*USB3.0，4*USB2.0;
Suppoort 1*MiniPCIe for WIFI+BT;
Support 1*Msata for SSD ;
Support SO-DIMM DDR3L memory，up to 16GB;
Support DP/HDMI+HDMI/VGA dual display;
| System | CPU | Intel® 6th/7th CPU |
| Chipset | Intel® SOC CPU | |
| BIOS | AMI BIOS | |
| GPU | Intel® HD Graphics 610/620 | |
| Display | HDMI | 1 x HDMI(Max. 3840 x 2160 @30Hz) |
| VGA | 1 x VGA (Max. 1920 x 1080 ) | |
| Extend | M.2 | 1 x M.2 2230 for WIFI+BT |
| Storage | M.2 | M.2 2280 For SSD |
| mSATA | Full Size Mini-PCIe Slot For mSATA | |
| I/O Ports | Ethetnet | Realtek 8111H; |
| 1x RJ45（optional 2 x RJ45） | ||
| USB | 3 x USB3.0，3 x USB2.0 | |
| Audio | 1 x 3.5mm MIC， 1 x 3.5mm Line out | |
| LED | 1x Power LED，1 x HDD LED，1 x LAN LED | |
| Seriel | Optianal 1 x RS232 | |
| Management | WoL | |
| Power by RTC | ||
| Power on | ||
| Power | Type | DC IN |
| Voltage | 12V~19V | |
| Rate | 60W | |
| Environment | Operating Temp | 0 ℃ ~ 40 ℃ |
| Storage Temp | -20 ℃ ~ 60 ℃ | |
| RH | 95%@40 ℃（Non-condensing） | |
| Mechanical | Mounting | Desktop &Mount |
| Dimonsions | 190mm x 148mm x 26mm | |
| Colour | Black | |
| Certifications | CE/FCC(DoC) Class B，CCC | |
